9" Garmin Panoptix Livescope Ice Fishing Bundle With ECHOMAP UHD 93sv
9" Garmin Panoptix Livescope Ice Fishing Bundle With ECHOMAP UHD 93sv
Couldn't load pickup availability
SONAR, FLASHER, CHARTPLOTTER: A PREMIUM FISHING EXPERIENCE
Drill fewer holes and catch more fish with the Panoptix LiveScope™ ice fishing bundle, which includes an ECHOMAP™ UHD 93sv combo and Panoptix LiveScope sonar transducer.
Hit your limit with the power of Panoptix Livescope, which offers two modes of sonar in one transducer.
If it’s out there, you’ll know it — with revolutionary real-time sonar that lets you see up to 200’ in any direction.
Only drill where there’s fish when you use LiveScope™ Forward sonar.
Keep an eye on your jig and what it attracts with LiveScope™ Down sonar.
It’s all in the details. And with LakeVü g3 maps, you’ll get them all on 18,000 lakes.

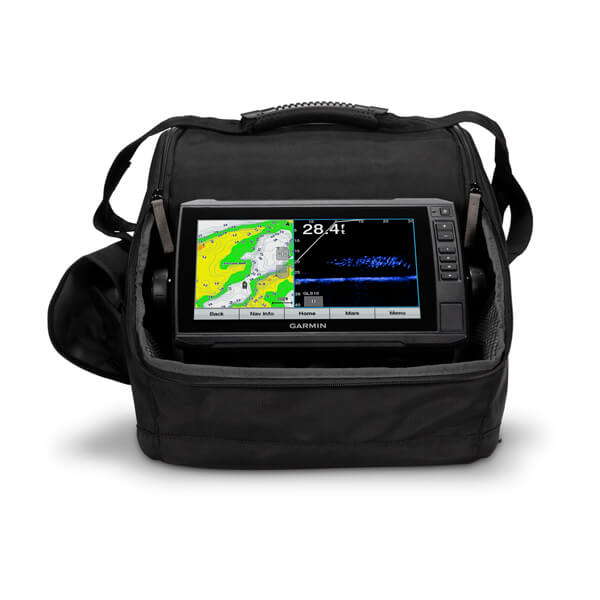

Everything goes where you go. All accessories fit in the rugged, portable carrying case.
ECHOMAP™ UHD
Revolutionary real-time sonar pairs with a large ECHOMAP UHD 93sv combo touchscreen display, allowing you to see up to 200’ in any direction.
TWO MODES, ONE TRANSDUCER
Adapt your fishing technique with a Panoptix LiveScope system, which offers 2 scanning sonar modes. The bundle also includes a lead acid battery, charger and swivel pole mount.
LIVESCOPE FORWARD
LiveScope Forward sonar shows up to 200’ all around you and below the ice, so you can locate schools of fish and know where to drill the next hole.
LIVESCOPE DOWN
LiveScope Down sonar shows moving sonar images of what is below the ice, so you can watch fish respond to your jig.
LAKEVÜ G3 MAPS
The unit comes preloaded with LakeVü g3 maps with integrated Navionics® data, covering more than 18,000 lakes in the U.S.
BUILT-IN FLASHER
The built-in flasher provides accurate jig and fish detection as they swim into the sonar beam.
CUSTOM COMBOS
You can create custom pages that combine Panoptix™ sonar, flasher and map on your display.

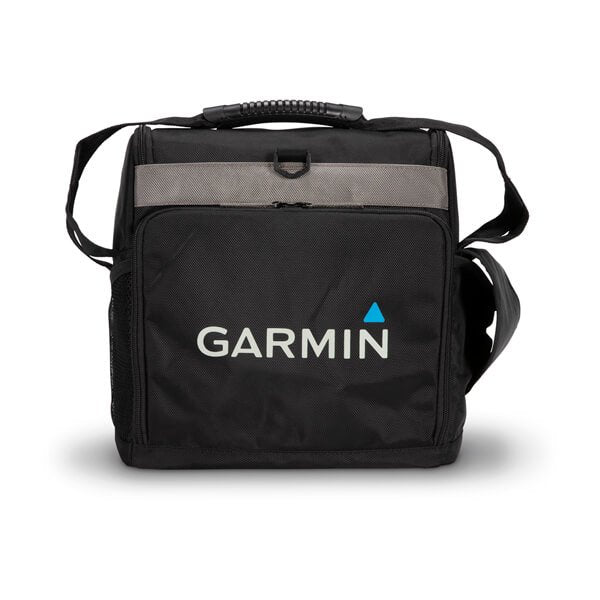

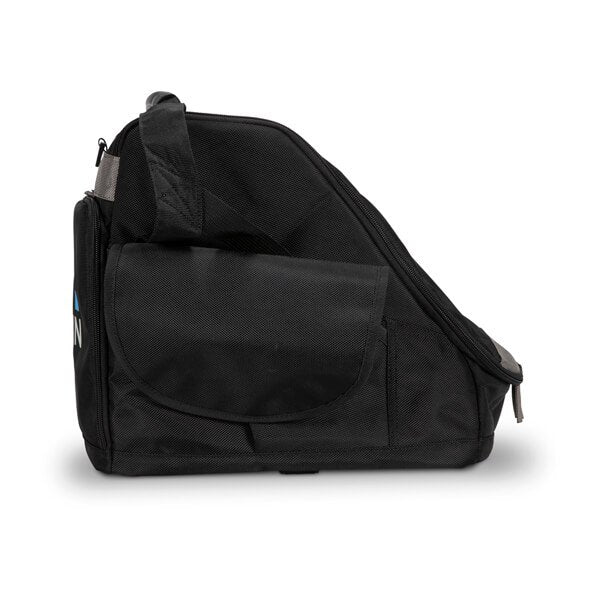

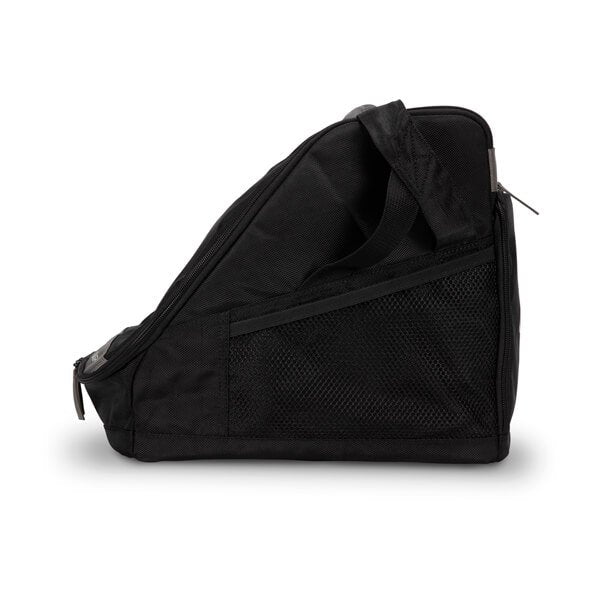

CARRYING CASE
Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season.
Specifications
General
| PHYSICAL DIMENSIONS | 13.8" × 12.2" × 13.0" (35 × 31 × 33 cm) |
|---|---|
| DISPLAY SIZE | 7.8" x 4.8"; 9" diagonal (19.9 x 11.3 cm; 22.9 cm diagonal) |
| DISPLAY RESOLUTION | 800 x 480 pixels |
| DISPLAY TYPE | WVGA color |
| WEIGHT |
25.1 lb (11.4 kg) |
| WATER RATING | IPX7 |
| POWER CONSUMPTION | 6.2 W |
| ANTENNA | Internal or external over NMEA 2000 |
| TRANSMIT POWER | 500 W |
| RECEIVER | 5 Hz |
| GARMIN MARINE NETWORK™ PORTS | 1 Panoptix™ port |
Maps & Memory
| PRELOADED MAPS | LakeVü g3 (inland maps) |
|---|---|
| ACCEPTS DATA CARDS | 1 microSD™ card; 32 GB maximum card size |
| WAYPOINTS |
|
| TRACK LOG | 50,000 points; 50 saved tracks |
| ROUTES | 100 |
Outdoor Recreation
| TIDE TABLES | ✔ |
Chartplotter Features
| GARMIN SONAR COMPATIBLE | YES |
Sonar Features & Specifications
| FREQUENCIES SUPPORTED | 530 - 1,100 kHz |
|---|---|
| MAXIMUM DEPTH | Down and Forward: 200’ (61.0 m) |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) |
✔ |
| WATER TEMPERATURE LOG AND GRAPH | ✔ |
| SONAR RECORDING | ✔ |
| SONAR HISTORY REWIND | ✔ |
Connections
| NMEA 2000® COMPATIBLE | ✔ |
|---|---|
| TRANSDUCER PIN NUMBERS | 21-pin |
| NMEA 0183 INPUT PORTS | 1 |
| NMEA 0183 OUTPUT PORTS | 1 |
| WIRELESS CONNECTIVITY | YES |
Additional
| ADDITIONAL |
|
|---|
In The Box
- ECHOMAP™ UHD 93sv chartplotter
- Panoptix LiveScope™ System
- Panoptix ice fishing mount
- Tilt/swivel mount
- Power cable
- Documentation
- Portable fishing kit
- Bag with handle
- Rechargeable lead acid battery
- Battery charger
