The Gelcoater

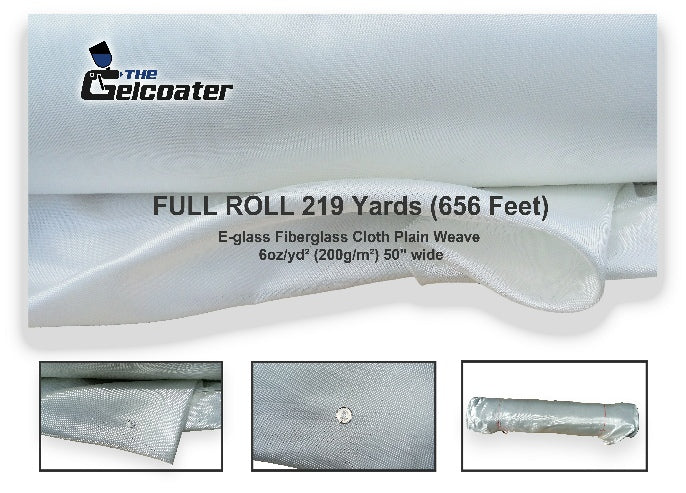

FULL ROLL 219 Yards (656 Feet) of E-glass Fiberglass Cloth Plain Weave 6oz/yd² (200g/m²) 50" wide

FULL ROLL 219 Yards (656 Feet) of E-glass Fiberglass Cloth Plain Weave 6oz/yd² (200g/m²) 50" wide

Regular price $649.77 USD
Regular price Sale price $649.77 USD
Sale Sold out
Shipping calculated at checkout.
Style
FULL ROLL 219 Yards (656 Feet) of 6oz/yd² (200g/m²) Plain Weave
Multi Compatible Fiberglass E Cloth
in 50 inch Width ISO 9002

W3-J Series Multi Compatible Fiberglass E Cloth is a premium quality cloth compatible with Polyester, Vinyl ester and Epoxy Resin Systems.  This Fiberglass cloth drapes well, lays easily on radii and corners, and conforms easily to intricate shapes and patterns.  The W3-J series Fiberglass cloth also wets out faster and more evenly to accelerate rolling and brushing.  The high quality of this fabric ensures uniform weight and construction minimizing the potential for air entrapment and weak areas in the laminate which helps produce stronger, smoother parts.

All W3-J Woven Fiberglass Fabrics are manufactured to meet ISO 9002 standards.  Because these products are highly engineered, the right combination of fabric weight, thickness and construction meets most customers' requirements in selecting the proper fabric for a particular application.

W3-J E-glass Woven Fiberglass Cloth is produced by conventional textile methods, in virtually any variation.  The types of construction are plain weave, twill weave, leno weave, satin weave and unidirectional weave, etc.  W3-J Woven Fiberglass Cloth is compatible for use with polyester, vinyl ester and epoxy resins.  These fabrics are very common in marine, automotive, composite construction and repair.



Features:

  • 6oz/yd² (200g/m²) plain weave, E glass has the right combination of fabric weight, thickness and construction to meet most requirements in different application fields.
  • Uniform weight and construction minimize the potential for air entrapment and weak areas in the laminate. This helps produce stronger, smoother parts.
  • Drapes well, lays easily on radii and corners, and conforms easily to intricate shapes and patterns.
  • Wets out faster and more evenly to accelerate rolling and brushing.
  • Advantages in reducing costs and contributing to end-product quality.
  • Reduced fabrication time.
  • Compatible with Polyester, Vinyl ester and Epoxy Resin Systems.

Specifications:

 Coating: Silane
Yarn Linear Density (TEX/Yield): Warp: 134/3700
Weft: 134/3700
Filament Diameter (μm): Warp:  9
Weft:  9
Counts (ends/inch): Warp:  20
Weft:  17.5
Yarn orientation (angle): Warp: 0 degrees
Weft: 90 degrees
Mass: 200g/m² (6oz/yd²)
Loss of Ignition (%): 0.4-0.8
Moisture Content (%): <0.2
Weave: Plain Weave

      Package Contents:

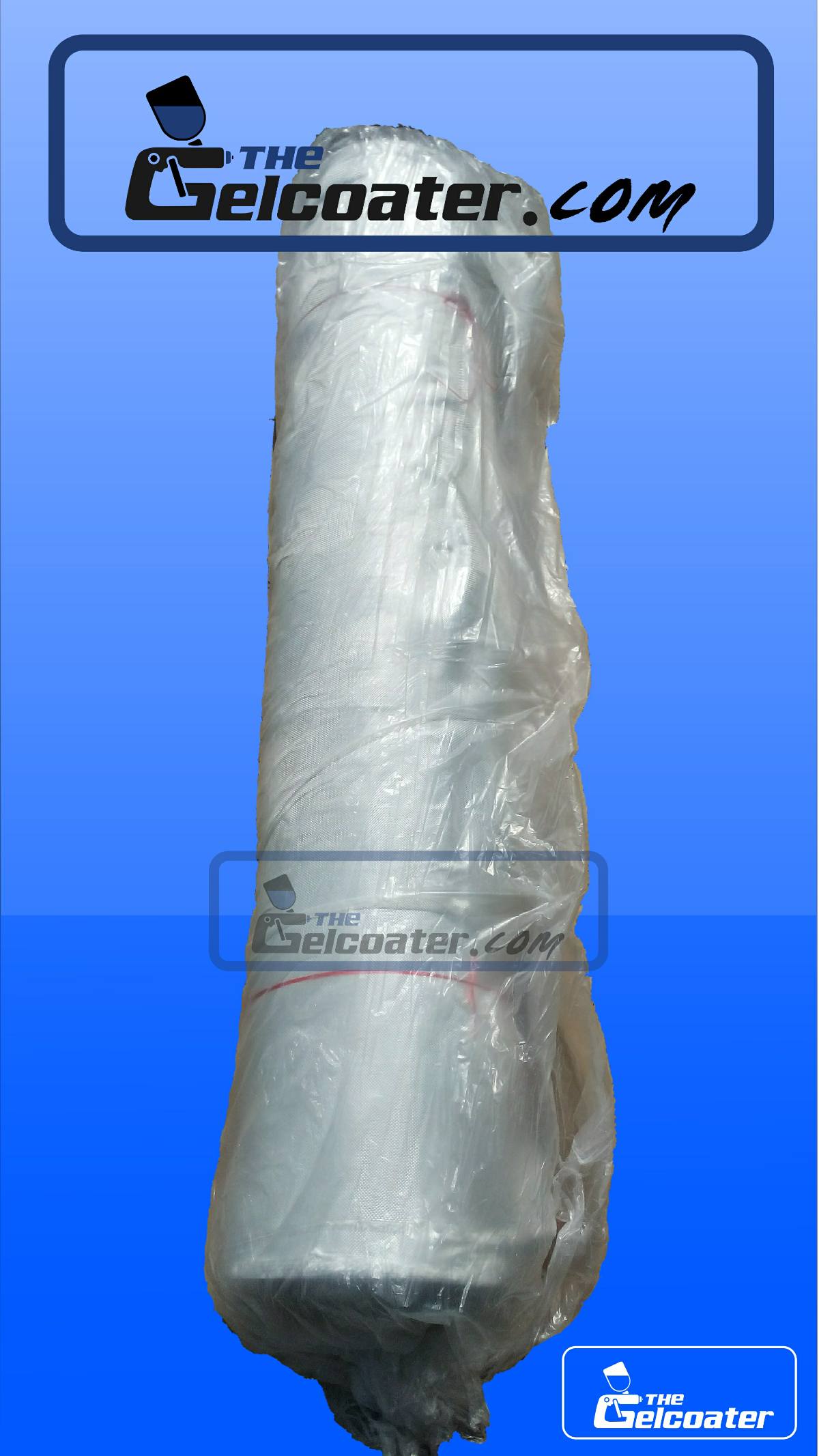

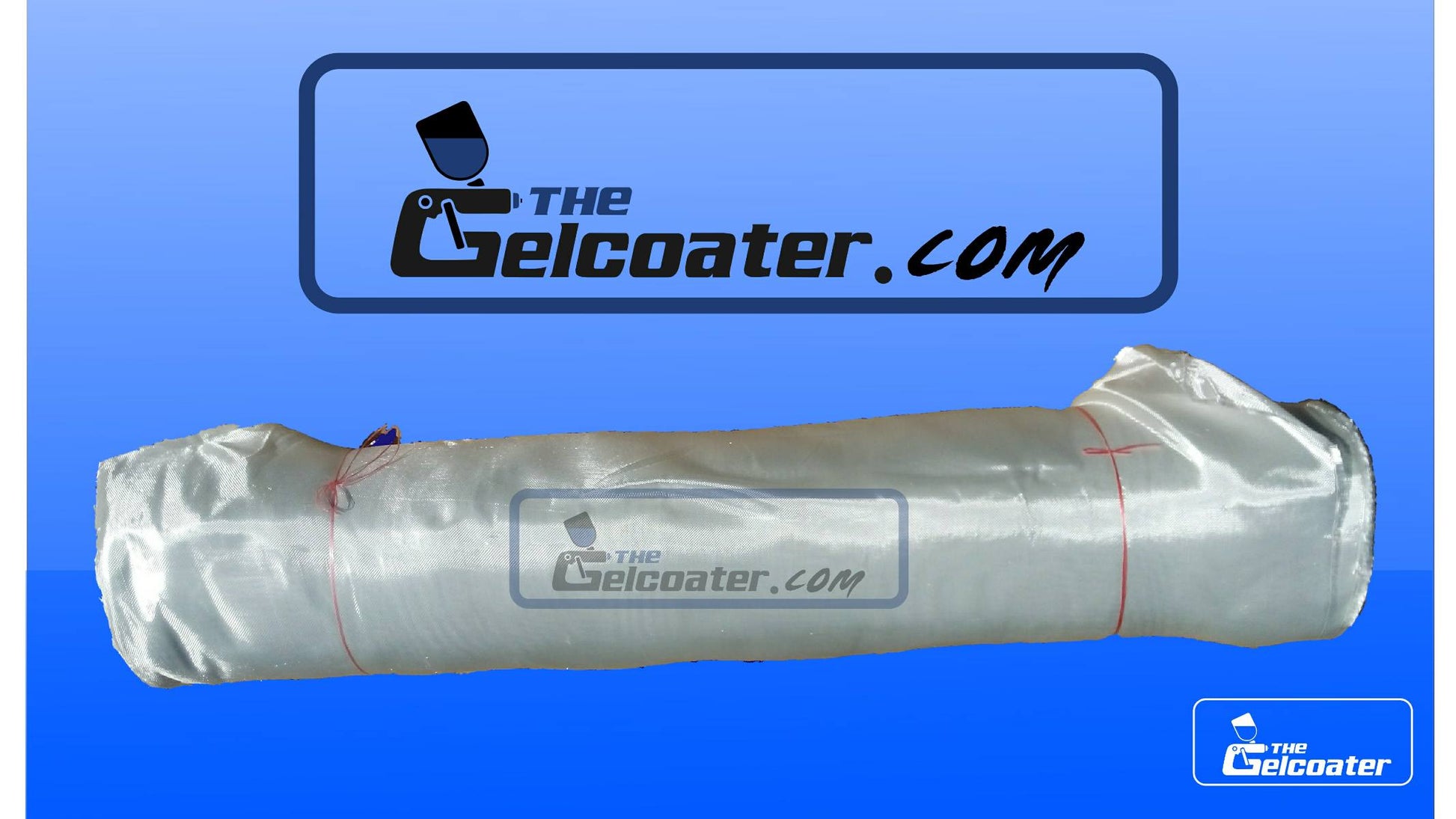

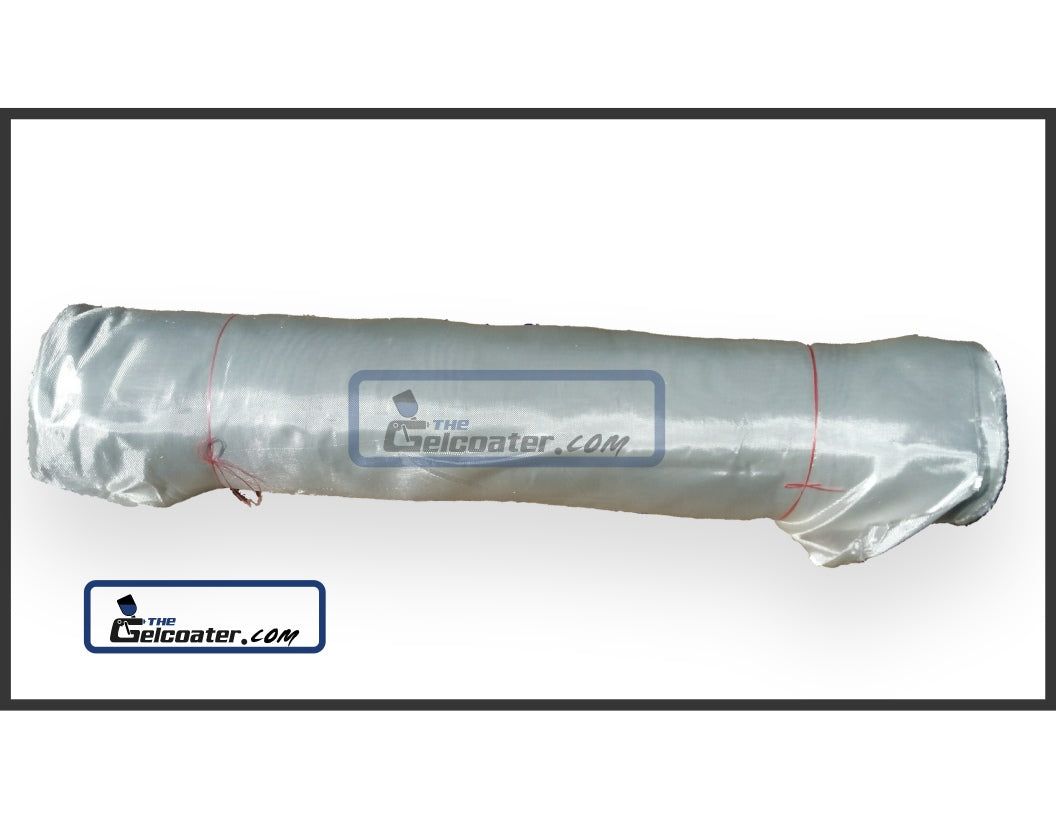

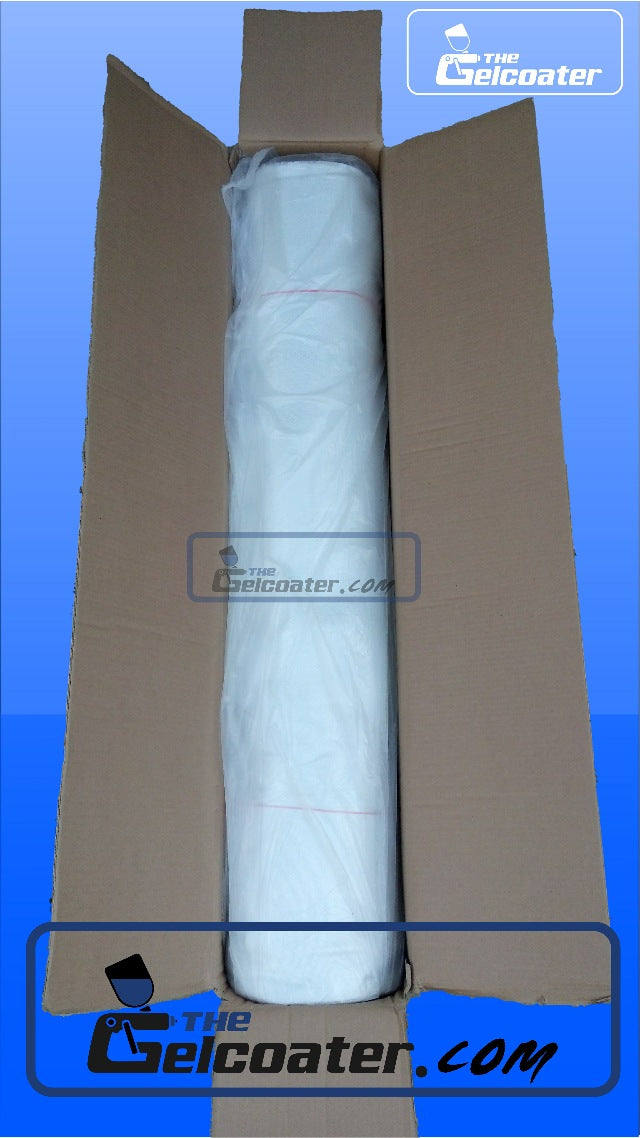

      • A FULL ROLL, 219 Yards (656 Feet) of Plain Weave 6oz (200g) Fiberglass E cloth in 50 inch width.
