20 Feet of E-glass Fiberglass Cloth Plain Weave 4.1oz/yd² (140g/m²) 28" wide
20 Feet of E-glass Fiberglass Cloth Plain Weave 4.1oz/yd² (140g/m²) 28" wide
Couldn't load pickup availability
Bay Mills Multi Compatible Fiberglass E Cloth is a premium quality cloth compatible with Polyester, Vinyl ester and Epoxy Resin Systems. This Fiberglass cloth drapes well, lays easily on radii and corners, and conforms easily to intricate shapes and patterns. The W3-J series Fiberglass cloth also wets out faster and more evenly to accelerate rolling and brushing. The high quality of this fabric ensures uniform weight and construction minimizing the potential for air entrapment and weak areas in the laminate which helps produce stronger, smoother parts.
All Bay Mills Woven Fiberglass Fabrics are manufactured to meet ISO 9002 standards. Because these products are highly engineered, the right combination of fabric weight, thickness and construction meets most customers' requirements in selecting the proper fabric for a particular application.
Bay Mills E-glass Woven Fiberglass Cloth is produced by conventional textile methods, in virtually any variation. The types of construction are plain weave, twill weave, leno weave, satin weave and unidirectional weave, etc. This Woven Fiberglass Cloth is compatible for use with polyester, vinyl ester and epoxy resins. These fabrics are very common in marine, automotive, composite construction and repair.
Features:
- 4.1oz (140gsm) plain weave E glass has the right combination of fabric weight, thickness and construction to meet most requirements in different application fields.
- Uniform weight and construction minimize the potential for air entrapment and weak areas in the laminate. This helps produce stronger, smoother parts.
- Drapes well, lays easily on radii and corners, and conforms easily to intricate shapes and patterns.
- Wets out faster and more evenly to accelerate rolling and brushing.
- Advantages in reducing costs and contributing to end-product quality.
- Reduce fabrication time.
- Compatible with Polyester, Vinyl ester and Epoxy Resin Systems.
Specifications:
Coating: | Silane |
Mass: | 140g/m² (4.1oz/yd²) |
Loss of Ignition (%): | 0.4-0.8 |
Moisture Content (%): | <0.2 |
Yarn orientation (angle): | Warp: 0 degrees |
Weft: 90 degrees | |
Weave: | Plain Weave |
Package Contents:
- 20 linear feet of Plain Weave 4.1oz (140g) Fiberglass E cloth in 28 inch width.
Share

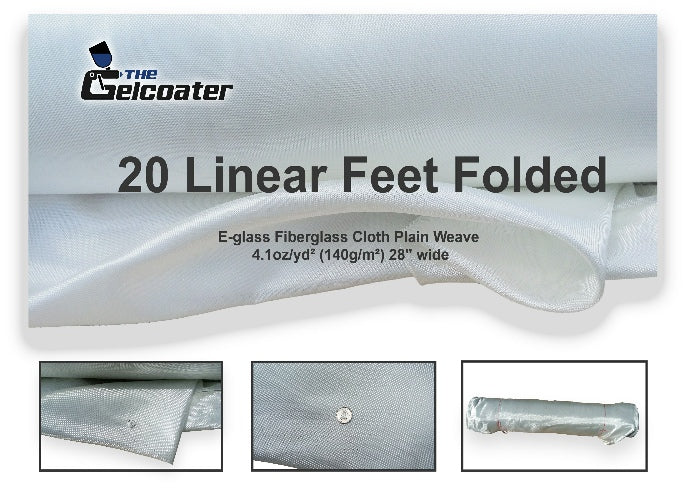

![20 linear feet of plain weave e-glass fiberglass cloth in 4.1 ounce per square yard, 140 grams per square meter weight and 28 inch width with various pictures of the cloth and The Gelcoater logo](http://www.thegelcoater.com/cdn/shop/files/plainweavefiberglasscloth4.1oz140g28inchwidthfibreglassthegelcoater20feet_384f5357-c90b-4e64-9e0c-cad749a8b7ae.jpg?v=1690337408&width=1445)
![the gelcoater dot com logo on top of beautiful shiny folded fiberglass cloth](http://www.thegelcoater.com/cdn/shop/files/6ozfiberglassclothplainweave200g50inchwidthfibreglass2_e65b862d-16ed-4fc9-88d2-7f96b956a4c9.jpg?v=1690337408&width=1445)

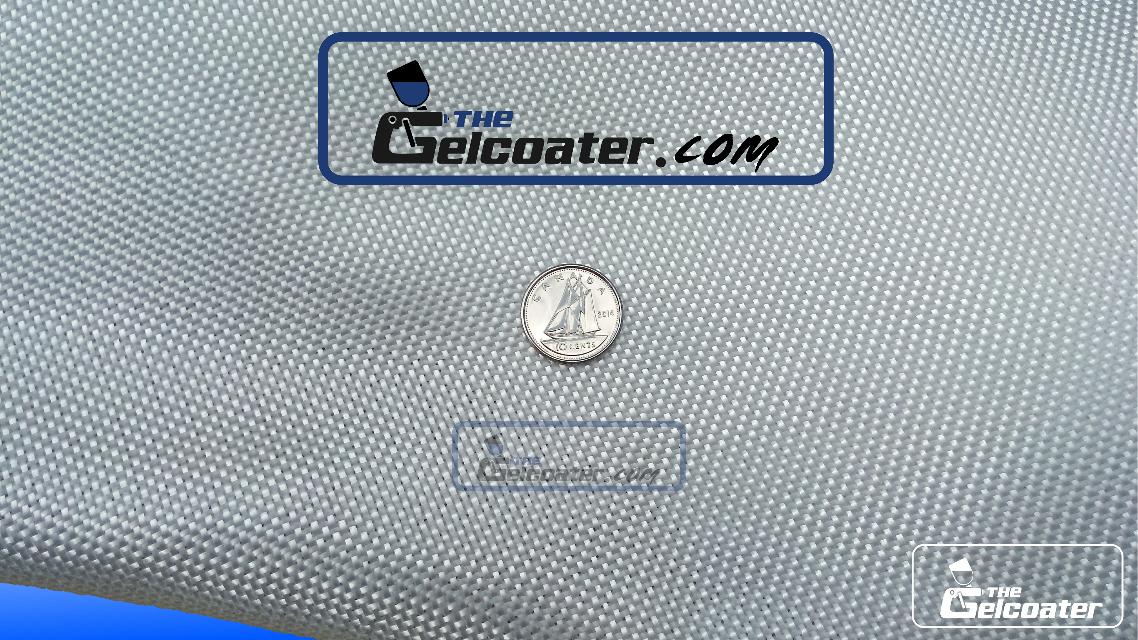

![the gelcoater dot com logo with a dime on top of fiberglass cloth to show the fineness and tightness of the cloths weave](http://www.thegelcoater.com/cdn/shop/files/fiberglassclothplainweave6oz200gfibreglass50inchwidth_a57b5404-7096-47bc-9519-a2448bd19123.jpg?v=1690337408&width=1445)
![the gelcoater dot com logo with a dime on top of shimmering folded fiberglass cloth to show the fineness and tightness of the cloths weave](http://www.thegelcoater.com/cdn/shop/files/200g6ozplainweavefiberglasscloth50inchfibreglass2_db8d1c1f-93b5-40da-8490-9ede4e6179b3.jpg?v=1690337408&width=1445)

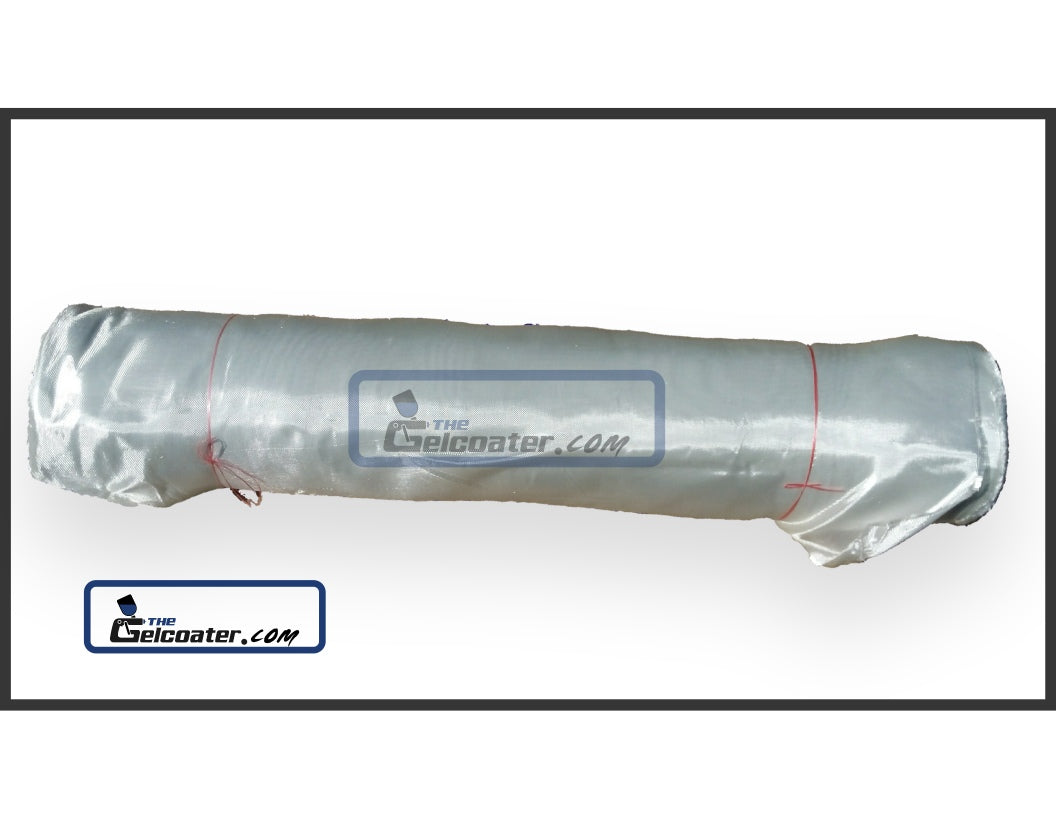

![the gelcoater dot com logo beside a full roll of fiberglass cloth](http://www.thegelcoater.com/cdn/shop/files/200gfiberglassclothplainweave50inchwidth6ozfibreglassthegelcoater_6dd27a69-bfa7-4d9a-9b6e-09422b905fc7.jpg?v=1690337408&width=1445)
